    KA-BAND BUC / SUPER COMPACT 8W / 10W / 20W

    Ask Lasest Price
    Brand Name : PICOBUC
    Model Number : KA-BAND BUC/8W / 10W / 20W
    Certification : ISO9001,CE
    Price : Formal Quotation
    Payment Terms : T/T
    Supply Ability : 30 set / month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

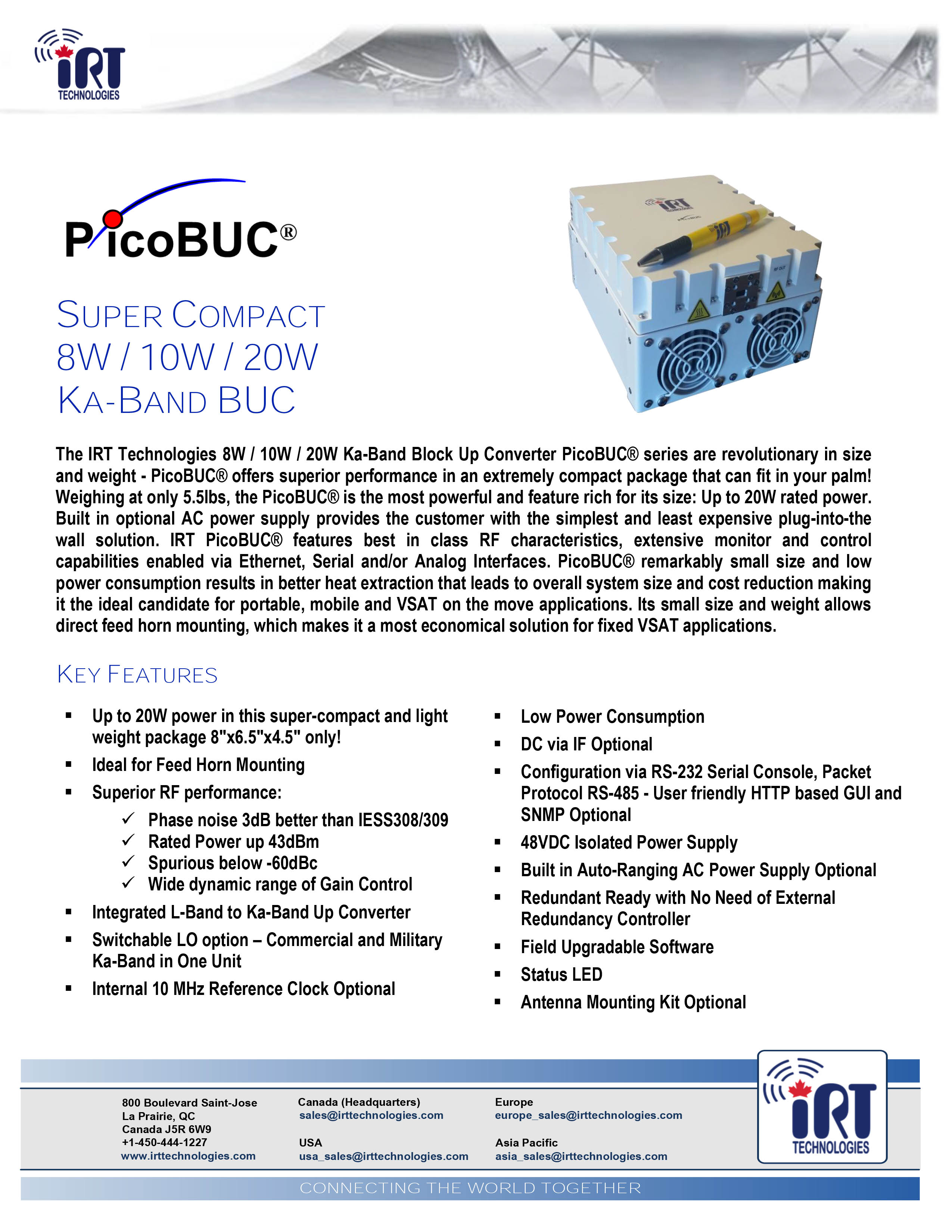

    KA-BAND BUC / SUPER COMPACT 8W / 10W / 20W

    KA-BAND BUC
    SUPER COMPACT 8W / 10W / 20W
    The IRT Technologies 8W / 10W / 20W Ka-Band Block Up Converter PicoBUC® series are revolutionary in size and weight - PicoBUC® offers superior performance in an extremely compact package that can fit in your palm!
    Weighing at only 5.5lbs, the PicoBUC® is the most powerful and feature rich for its size: Up to 20W rated power.
    Built in optional AC power supply provides the customer with the simplest and least expensive plug-into-the wall solution. IRT PicoBUC® features best in class RF characteristics, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analog Interfaces. PicoBUC® remarkably small size and low power consumption results in better heat extraction that leads to overall system size and cost reduction making it the ideal candidate for portable, mobile and VSAT on the move applications. Its small size and weight allows direct feed horn mounting, which makes it a most economical solution for fixed VSAT applications.
    KEY FEATURES:

     Up to 20W power in this super-compact and light weight package 8"x6.5"x4.5" only!
     Ideal for Feed Horn Mounting
     Superior RF performance:
     Phase noise 3dB better than IESS308/309
     Rated Power up 43dBm
     Spurious below -60dBc
     Wide dynamic range of Gain Control
     Integrated L-Band to Ka-Band Up Converter
     Switchable LO option – Commercial and Military Ka-Band in One Unit
     Internal 10 MHz Reference Clock Optional
     Low Power Consumption
     DC via IF Optional
     Configuration via RS-232 Serial Console, Packet Protocol RS-485 - User friendly HTTP Based GUI and SNMP Optional
     48VDC Isolated Power Supply
     Built in Auto-Ranging AC Power Supply Optional
     Redundant Ready with No Need of External Redundancy Controller
     Field Upgradable Software
     Status LED
     Antenna Mounting Kit Optional
