    Paradise Outdoor Redundant Uplink System

    Ask Lasest Price
    Brand Name : Paradise
    Model Number : Paradise–Redundant - C/KU - Uplink
    Certification : ISO9001,CE
    Price : Formal Quotation
    Payment Terms : T/T
    Supply Ability : 20 sets/ month
    Delivery Time : 45 Days
    • Product Details
    • Company Profile

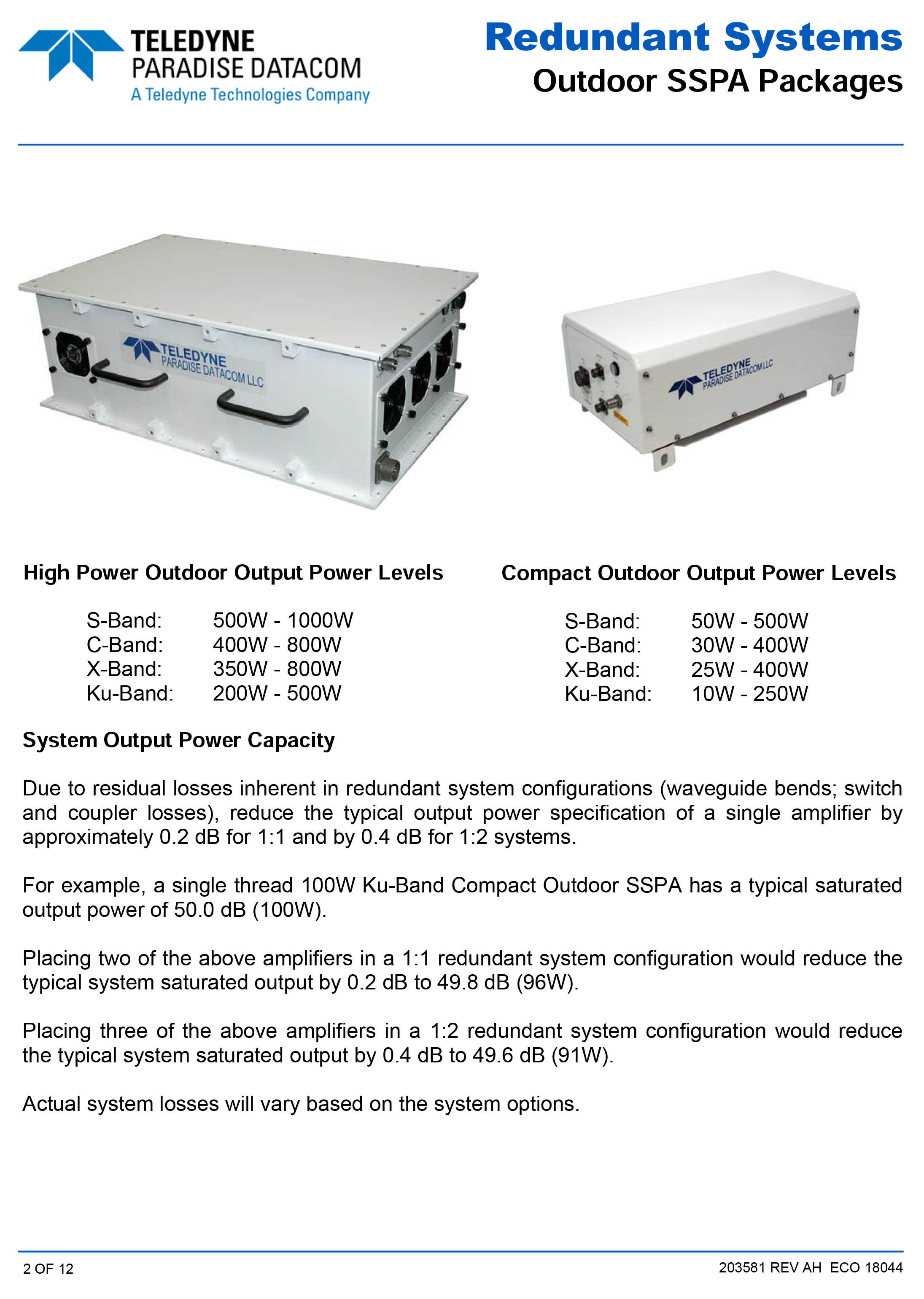

    Paradise Outdoor Redundant Uplink System

    Teledyne Paradise Datacom’s Outdoor series of redundant amplifier systems provide the highest degree of earth station redundancy and reliability. Based on Teledyne Paradise Datacom’s family of rugged and robust SSPAs, these systems provide the highest MTBFs possible.
    These systems can be configured in either 1:1 or 1:2 redundant configurations using any of the Teledyne Paradise Datacom family of Outdoor SSPAs. The RCP2-1100/1200 Redundant Controller provides an extremely user-friendly interface for complete monitor and control of the high power amplifiers in either 1:1 or 1:2 configurations.
    The RCP front panel mimic display shows the on-line amplifiers and the current switch positions. Dedicated fault lights provide easy indication of system status. All RCP2-1X00 monitor and control is available locally, at the front panel LCD display, as well as remotely by the RS-232 or RS-485 interface ports.
    FEATURES:

    • System Output Power to:
    1000W S-Band;
    800W C-Band;
    800W X-Band;
    400W Ku-Band
    • Universal Input, Power Factor Corrected PowerSupply
    • Output Power Monitoring
    • Separate 1RU Redundant Controller or Controllerless configurations

    OPTIONS:
    • System Output Power Monitor
    • Reflected Power Alarm
    • L-Band Input Operation
    • Cold Standby Amplifier Operation
    • Custom Configurations
