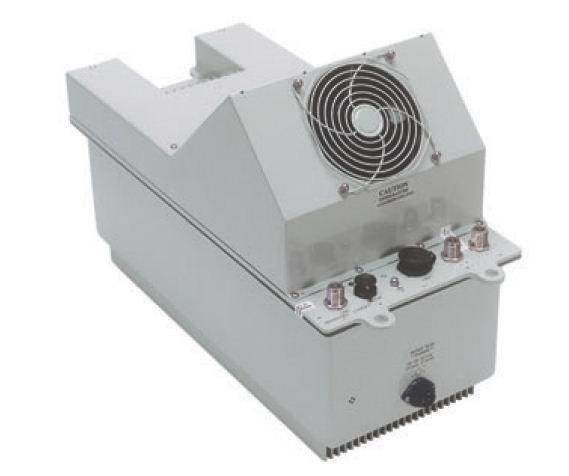

    AnaSat 0W to 400W c band SEC

    AnaCom's series of C-band VSAT transceivers are available in transmitter output levels up to 400 Watts,in single or redundant configurations. These transceivers are ruggedly built for continuous outdoor duty in all types of environments. They are especially suitable for SCPC, MCPC, and DAMA applications.

    The upconverter, downconverter, power amplifier, monitor and control and power supply are included in a single enclosure and the only cabling required to the indoor equipment are IF cables. The LNC connects to the transceiver with a single coaxial cable. An ovenized, high stability crystal oscillator is used to lock the TX and RX synthesizers. Additional temperature and aging compensation are provided by the onboard microprocessor.

    Features

    l Built in test facilities for improved maintainability and reduced dependence on external test equipmentl

    l No indoor equipment is needed

    l Frequency agile radio equipment. Completely independent TX and RX frequency selection

    l Superior phase noise

    l Flexible, universal power supply

    l Built In Test Equipment

    l To improve and simplify maintenance routines, an external terminal

    l (or computer) can be connected to monitor a number of critical

    l parameters without use of additional test equipment. These include:

    l Transmitter power output level

    l TX and RX IF level

    l Power supply voltages

    l TX and RX synthesizer loop voltages

    l Internal Temperature

    l Alarm Details

    Controllable functions from the terminal include:

    l TX frequency and gain (ON/OFF feature)

    l RX frequency and gain (independent from TX)

    Benefits

    l “Last Touch” controls allow for remote configuration or local (manual) configuration

    l Flash memory means that the transceiver always powers up with exactly the same operating

    conditions as when it lost power (or was turned off)

    l Comprehensive maintenance features for operational effectiveness and minimum outages.

    l Simple installation.

    Comprehensive Monitor & Control

    A powerful Monitor & Control feature allows you to monitor and control the transceiver on the same M&C

    bus with most indoor equipment such as modems and multiplexers. The Monitor & Control system can be

    used in combination with the unit’s internal metering function to monitor operational parameters.

    Flexible Applications

    l Rural Telecommunications expansion

    l Industrial networking

    l LAN and WAN extensions

    l Emergency link restoration

    l Remote surveillance

    l Broadcast

    l Data distribution and collection

    l Point-of-sales systems

    l Video teleconferencing

    l Conventional voice traffic
