    Solid State Power Amplifiers in C-, X-, and Ku-Bands for Satellite Communication

    Ask Lasest Price
    Brand Name : Paradise
    Certification : ISO9001
    Model Number : HPACC3075AC_XXXX
    Price : Formal Quotation
    Delivery Time : 35 days
    Payment Terms : T / T
    Supply Ability : 10 sets per season
    • Product Details
    • Company Profile

    Solid State Power Amplifiers in C-, X-, and Ku-Bands for Satellite Communication

    Description:
    The Paradise Datacom Mini Compact Outdoor Solid State Power Amplifier (SSPA) is built for extreme environmental
    conditions and high reliability operation. Along with the robust construction exists the highest power density in the industry.
    This allows solid state technology to be used in applications that have long been reserved for TWTAs.
    At less than 24.5 lbs. (11.2 kg), and only slightly larger than a lunch box, this family of SSPAs is available in the following
    output power levels:
    C-Band: 75W, 100W, 175W
    X-Band: 50W, 75W, 100W, 175W
    Ku-Band: 50W, 80W
    FEATURES
    • Compact size and weight
    • CE Compliance Tested
    • Integrated forced-air cooling system
    • Adjustable RF Gain, 55 dB to 75 dB
    • Extreme Environmental Testing
    • RF Output Sample Port
    • Maintenance Free
    Operation
    • Universal, Power Factor
    Corrected Power Supply
    • Built-in 1:1 Redundancy Control
    • Remote M&C via Serial or Ethernet
    • Integrated Output Isolator for load VSWR protection
    OPTIONS
    • Extended band operation
    • Antenna Mounting Kit
    • Remote Control Panel
    • L-Band Input
    • FSK monitor & control via IFL
    • Phase Combined Systems
    • Fiber Optic Interface
    • Optional side-mount AC input for SNG installations

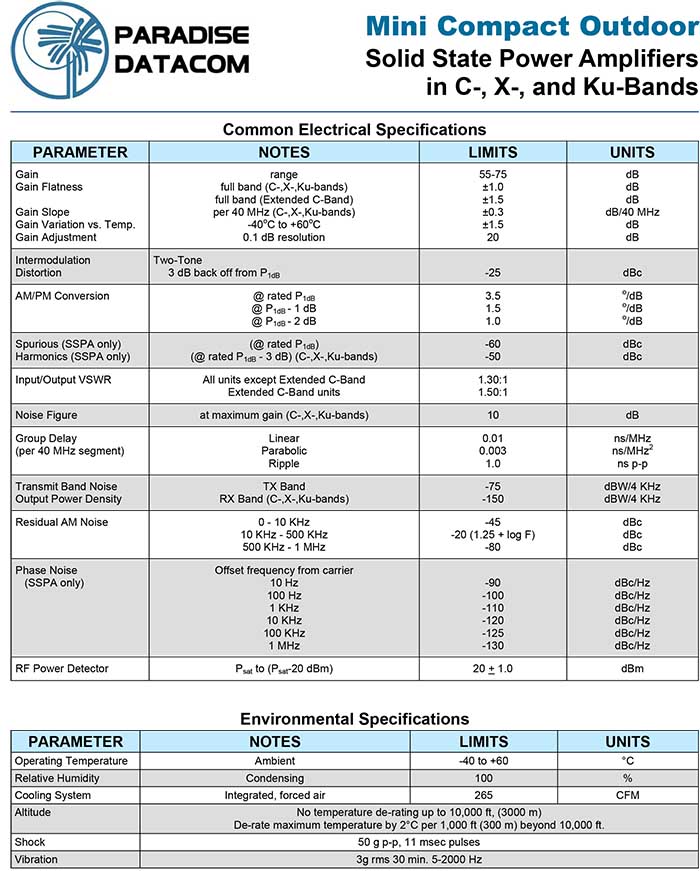

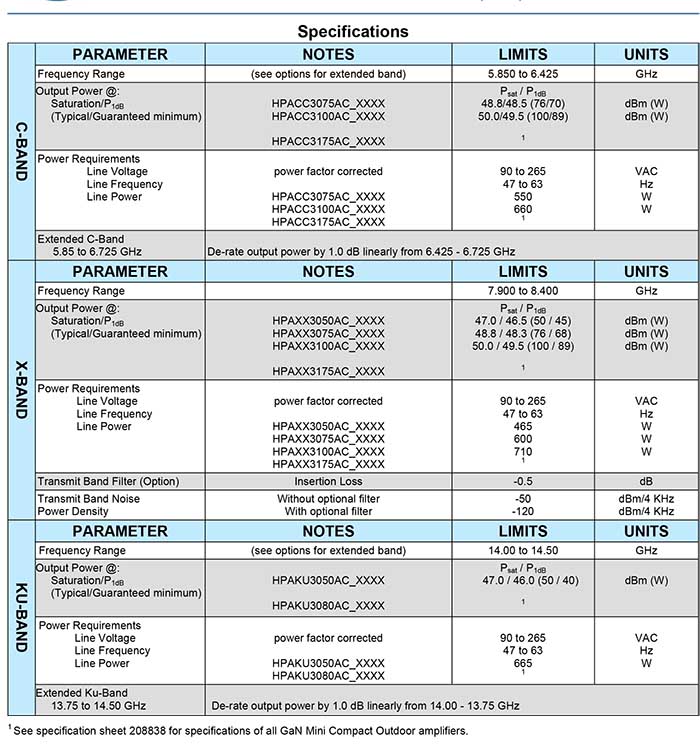

    SPECIFICATIONS
    • Compact Outdoor housing 9.0 X 12.0 X 6.50 in 229 X 305 X 165 mm
    • White powder coat finish
    • Operating temperature: -40 to +60 °C

    Quality Solid State Power Amplifiers in C-, X-, and Ku-Bands for Satellite Communication for sale
