    Flyaway Antenna - Interstellar - ZMTK1800 - C Band

    Ask Lasest Price
    Brand Name : Intersrellar
    Certification : ISO9001
    Model Number : ZMTK1800
    Price : Formal Quotation
    Delivery Time : 20 days
    Payment Terms : T/T
    Supply Ability :
    • Product Details
    • Company Profile

    Flyaway Antenna - Interstellar - ZMTK1800 - C Band

    Interstellar - ZMTK1800 Fly Away Antenna Technical Features


    1. Electrical character:

    C- Rx C - TX

    Frequency(GHz) 3.625-4.2 5.85-6.425

    Gain 35.5dB 39.5dB

    SWR 1.25:1 1.25:1

    Beam width 0.92° 0.78°

    Power capacity 1Kw/port

    Interface type: WR229 WR137

    Feed insertion loss: 0.35dB 0.35dB

    RX TX Isolation: 85dB

    Polarization Isolation: 35dB 35dB

    First side lobe: -14dB

    Other side lobe: 29-25lgA(dB)

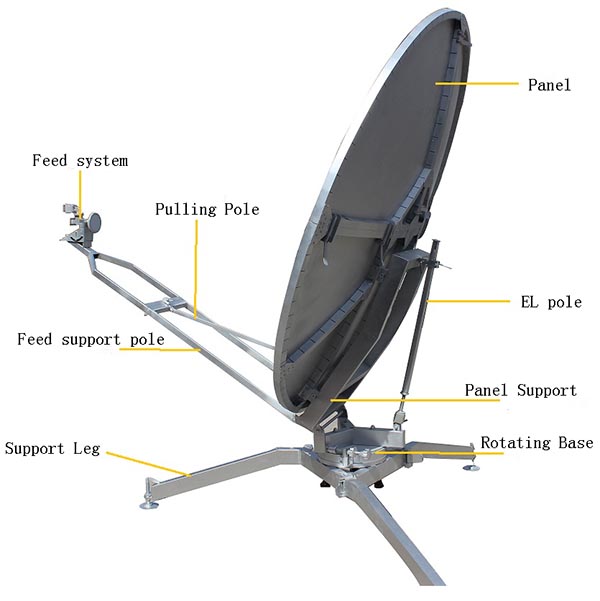

    2. Mechanical Feature:

    AZ range: 360°

    EL range: 8°to 90°

    PoL Range: 360°

    3. Environment:

    Working wind speed: 20m/s

    Temperature: -40°to 60°

    Humidity : 0% to 100%

    Solar radiation: 360BTU/H/ft²

    Raining: 16cm/hour
