    APC400 Antenna Controller

    Ask Lasest Price
    Brand Name : ASC
    Certification : ISO9001
    Model Number : APC400
    Price : Negotiable
    Delivery Time : 45 days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    APC400 Antenna Controller

    APC400 Overview
    The APC400 Antenna Control Unit is an antenna controller that provides basic point, maintenance, and
    optional tracking functions for small and medium-sized earth station antennas. The APC400 provides the
    user with control over basic motorization kits for earth station satellites by utilizing a simple liquid crystal
    display (LCD) front panel interface and powerful software protocol options. The software protocols can
    be manipulated through remote control.
    The APC400 replaces the legacy APC 100 Antenna Controller. When equipped with an optional beacon
    interface adapter PCB and appropriate software license keys, the APC400 may be used to replace a legacy
    Andrew APC300 Controller.
    Standard Features
    The APC400 supports the following standard features:
     Motor control for two and three axis motor systems utilizing standard interface
     Two different motor speeds for azimuth and elevation axes
     Single speed polarization rotators
     Automatic positioning of antennas through pre-programmed look angles
     Operator control using an LCD panel and keypad
     Operator remote control through network and serial port-based communication protocols,
    including legacy protocols and Simple Network Management Protocol (SNMP)
     10/100 BaseT ethernet interface
     Serial port interface (multiple serial ports)
    Optional Features
    In future releases, the APC400 can be equipped with several optional features for more complex earth
    stations. The APC400 Antenna Control Unit can be purchased with tracking capabilities and the
    following more advanced features:
     Integral beacon receiver to support three-point peaking based step-track
     NORAD and Intelsat ephemeris predictive tracking
     SmarTrack® hybrid feedback/predictive program tracking
    Unlocking the tracking features also enables several other features, such as a time-sequenced event/fault
    log. All of these features require optional hardware, and require installation of a software license key.
    APC400 Subsystems
    This section provides a high-level overview of the APC400’s subsystems. The APC400 includes the
    following subsystems:
     Processing Subsystem
     Resolver to Digital Subsystem

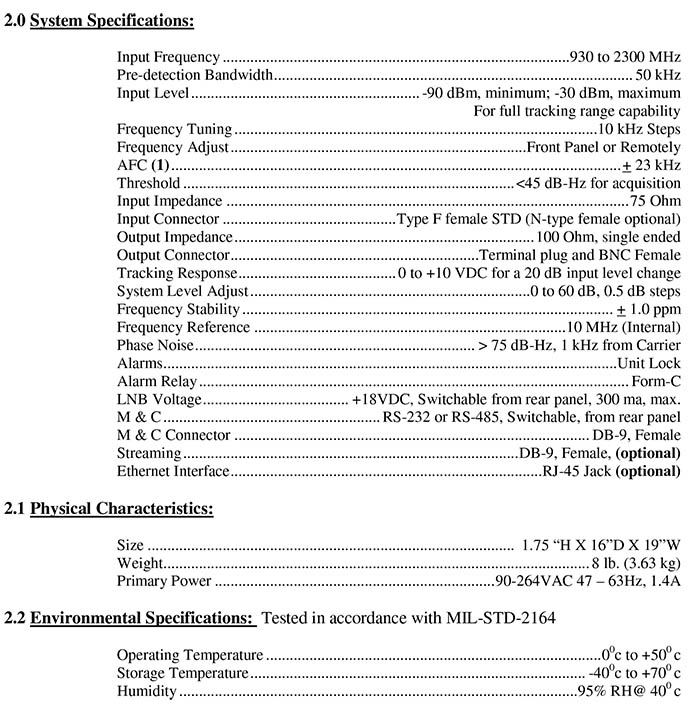

    ASC300LW Beacon Receiver
    The Model ASC300LW Beacon Receiver is a high performance unit that is designed to real time track the power density of a satellite beacon and output a DC voltage that is linearly proportional to the beacon power. The applications for the ASC300LW are for antenna step track controlling and uplink power control systems.
