    Earth Station PD80L DVBS2 L-band Satellite Modem

    Ask Lasest Price
    Brand Name : PARADISE
    Certification : ISO9001
    Model Number : PD80L DVBS2 L-band
    Price : Formal Quotation
    Delivery Time : 25 days
    Payment Terms : T/T
    Supply Ability : 10 sets per month
    • Product Details
    • Company Profile

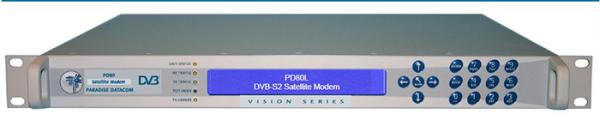

    Earth Station PD80L DVBS2 L-band Satellite Modem

    PD80L DVBS2 L-band Satellite Modem
    OVERVIEW

    The Vision Series PD80L is an 80Mbps Digital Video Broadcast (DVB) Satellite-Modem, operating up to 40Msymbols/s in DVB-S2, DVB-S and DVB-DSNG modes. The Modem supports QPSK, 8PSK,

    16QAM and 16APSK modulation and the Constant Coding and Modulation (CCM) mode of DVB-S2. ASI and Gigabit Ethernet interfaces are supported.

    REMOTE CONTROL & WEB INTERFACE

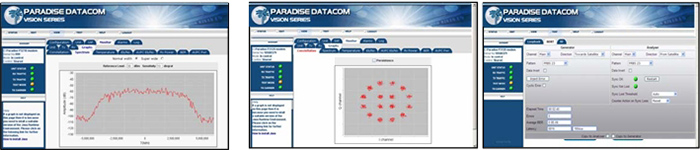

    Web User Interface available via integral web server including; Receive Spectrum Analyser, Receive Constella- tion Monitor, BER Tester and graphing of Eb/No, Rx Power, BER plus other

    parameters, using a web browser 

    Ethernet with embedded web server and SNMP network management support

    RS485 multi-drop addressable

    RS232 for direct PC connection

    FEATURES

    X DVB-S (EN 300 421), DVB-SNG (EN 301210) and DVB-S2 (EN 302 307) operation up to 40Msps

    X Built-in support for DVB-S2 Constant Coding and Modulation (CCM)

    X Variable Coding and Modulation (VCM) and Adaptive Coding and Modulation (ACM) ready - requires just a software upgrade. Contact Customer Support for more details.
    X 950 - 1950MHz L-band in 100Hz steps
    X Support for QPSK, 8PSK, 16QAM and 16APSK modulation schemes

    X Inner Forward Error Correction (FEC) options of Viterbi1, Trellis Code Modulation1 (TCM) and Low Density Parity Code2 (LDPC)
    X Outer FEC options of concatenated Reed-Solomon1 (RS) and Bose-ChaudhuriHocquenghem2 (BCH)

    X ASI and Gigabit Ethernet traffic options
    X Rich internal IP feature set: dynamic routing, TCP Acceleration, HTTP Acceleration, Header Compression, Ethernet Bridge, DHCP, IEEE 802.1p QoS, IEEE 802.1q VLAN, FTP, Telnet, SMTP, SNMP, diagnostic graphs, and much more. IP over DVB encapsulation supports the use of both the Multi-Protocol Encapsulation (MPE) and Ultra Lightweight Encapsulation (ULE) standards

    X Compact 1U chassis, 405mm deep
